1100 Pure Aluminum Strip

1100 Pure Aluminum Strip

What is 1100 aluminum strip

Aluminum alloy 1100 is a kind of industrial pure aluminum. Its aluminum content is 99.00%, and it cannot be strengthened by heat treatment. 1100 aluminum strip has high corrosion resistance, electrical conductivity and thermal conductivity, low density, good plasticity and low strength. After anodizing, the corrosion resistance can be further improved, and a beautiful surface can be obtained at the same time.

Its different names: Japan: Al100/Al00 (JIS); European standard: EN AW 1100 (EN); France: A45; Canada 990C (CSA); America: 1100 (AA). Its common tempers are H24, H14 and O. The width tolerance of 1100 aluminum strip is within 0.1mm, which is generally negative tolerance. There are many uses of aluminum strip, such as aluminum-plastic composite pipe, cable, optical cable, transformer, heater, shutter and so on.

Aluminum alloy 1100 Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Each

Others

Total

Al min

1100

0.95

0.05-0.20

0.05

-

-

0.10

-

0.05

0.15

99

Specification

Alloy

1100 aluminum strip

Tempers

O, H32, H34, H36, H38, H111, H112, H24, H14

Thickness

0.02mm - 12.00mm

Width

20mm - 2600mm

Length

20mm - 8000mm

Surface treatment

Single-sided or double-sided film protection

Packing

Simple packing, three-layer moisture-proof fine packaging, logistic packaging, foreign trade shipping packaging.

Physical Properties

Alloy

Harness

Tensile strength

(MPa)

Yield strength

(MPa)

Elongation

1100

0.25-1.25 mm

1.26-3.0 mm

O

89.6

34.5

30

6

H12

110.3

103.4

4

12

H14

124.1

117.2

3

10

Applications

1100 aluminum strips are generally used in utensils, heat sinks, bottle caps, circuit board, building materials, heat exchanger components, and can also be used as deep drawn products.

Bottle cap material: Haomei Aluminum is equipped with a super-long cleaning line and domestic leveling shears to ensure that the surface of the product is degreased and clean, and the ear-making rate is low. It is widely used for wine, beverage, medicine and cosmetic caps.

Heat sink: Heat sink is a device for cooling electronic components that are prone to heat in electrical appliances. It is mostly made of aluminum alloy, brass or bronze into plates, sheets, and multi-sheets. Aluminum heat sinks include aluminum 1070, 1060, 1100,etc., which meet the heat dissipation requirements, light weight and cheap price.

Printed Circuit Board(PCB): It is a provider of electrical connections for electronic components. The material of the printed circuit board is aluminum alloy, usually 1100 aluminum plate. It has good thermal conductivity, electrical insulation performance and mechanical processing performance, which can meet the requirements of later processing.

Lighting reflective material: ts mirror-like surface endows the lighting fixture with the best reflective surface, which greatly improves the light efficiency utilization rate of the lamp, thereby saving energy consumption. The mirror aluminum strip sheet is especially suitable for commercial lighting, such as grille lights, tunnel lights, explosion-proof lights, etc., which require a lot of energy consumption.

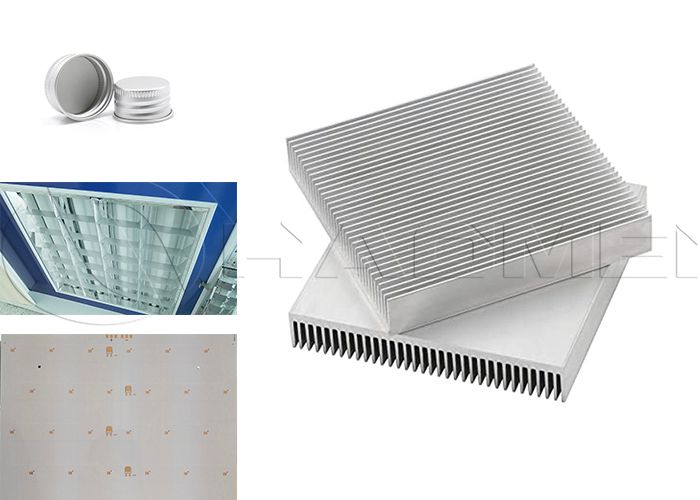

uses of 1100 aluminum strip.jpg

Why choose us

1. We have strict control at the beginning of the aluminum strip production such as the purchase of aluminum ingot.

2. The advanced slitting equipment minimize the width tolerance within 0.1mm. Bright surface is without scratches and of neat cut.

3. Haomei Aluminum has 30 years experience. With solid production capacity and enough stock of common specifications, we ensure short delivery to you.

Workshop

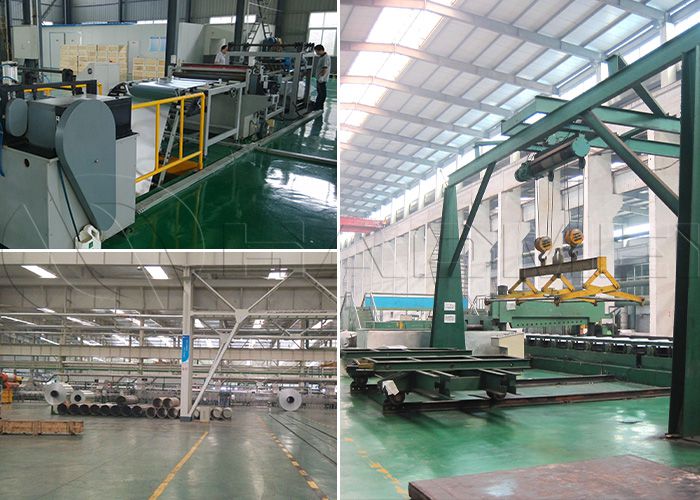

workshop of aluminum strip factory.jpg

Customers Visit

old customers of Haomei Aluminum.jpg

About Haomei Aluminum

With decades of exploration in the aluminum strip slitting industry, Haomei Aluminum has passed the ISO9001 system certification. At present, the company has three slitting lines and two trimming machines, which can meet the material slitting of customers' products with various specifications and meet the high quality requirements of customers. The peak production capacity can reach nearly 100 tons per day. Rich alloys and complete specifications are prepared for you to choose from.
